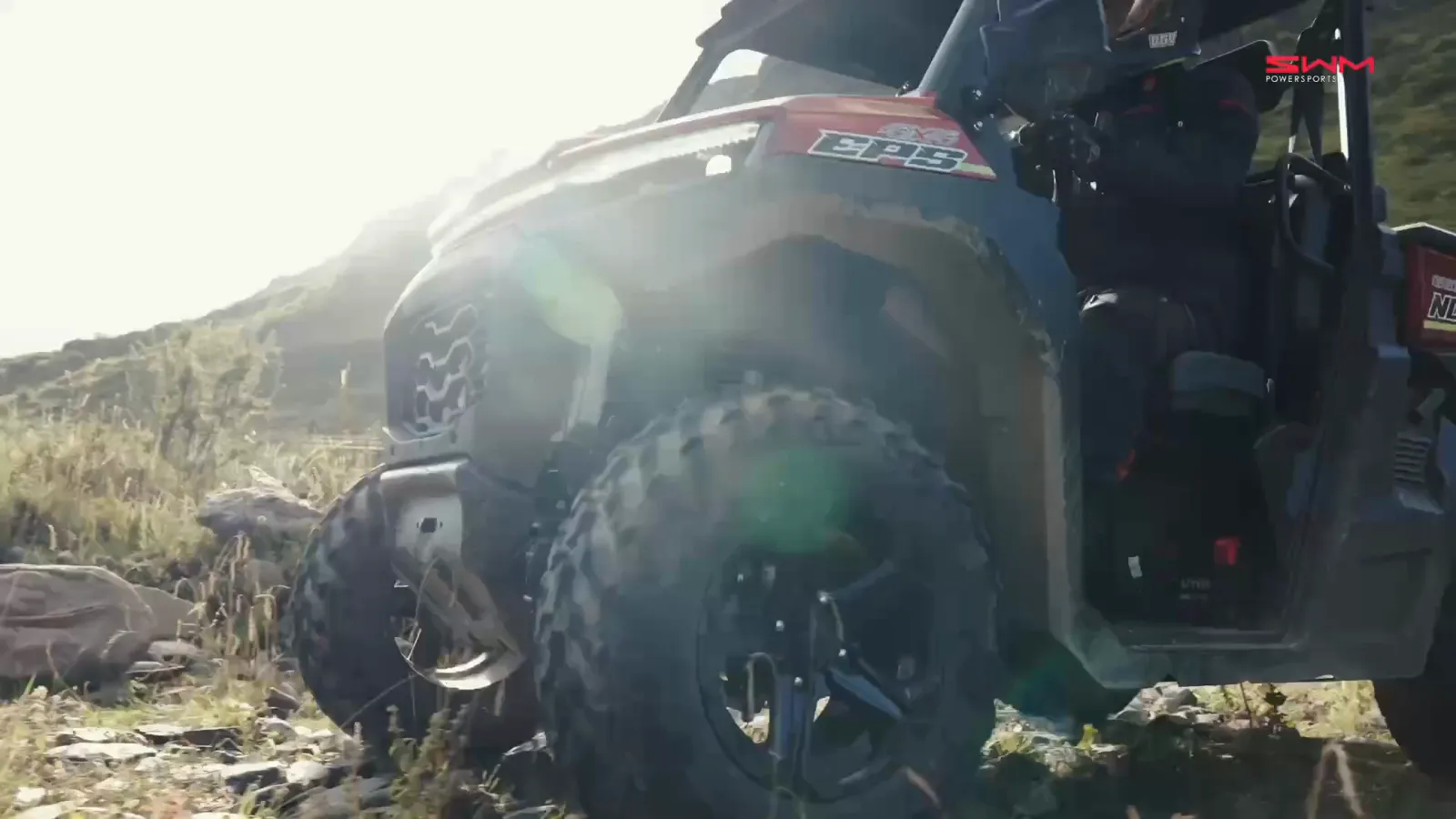

Model: NM-720 / 01
- Towing
- 810 kg
- Payload
- 350 kg
- Bed Capacity
- 350 kg
Towing810 kg
Payload350 kg
Bed Capacity350 kg
Ground Clearance280–317.5 mm
Winch1,131–1,587 kg
Drive Modes2WD/4WD
Main Features
What The Numbers Buy You
Bigger Bed, Bigger Pull
55 N·m behind a 350 kg tilting bed and 810 kg of towing.
A Cab You Can Work Out Of
Roof, windshield, doors and a 5 in. display standard — 7 in. multifunction higher up the range.
Crew Available
The same machine in a four-seat Crew layout when the job needs the whole crew.
ULT And MUD Available
Full glass tilt-up windshield, wiper and washer, 3,500 lb winch, or 28 in. mud tires and a mud kit.
Trims
Canada Takes The Top Trims
SWM builds base trims for other markets. Canada imports the top trims only.
PRO
- Triple-mode EPS
- 1,131 kg winch
- Handguards
- Mid-grade front bumper
- Rear hitch ball
- Eco / Standard / Sport modes
ULT
- Electronic gear shift
- Active descent control
- 1,583 kg winch
- Full glass tilt-up windshield
- Electric wiper and washer
- 7 in. multifunction display
- 27 in. tires, 14 in. aluminum wheels
MUD
- 28 in. mud tires, 14 in. aluminum wheels
- Mud kit
- Mud footrest
- Top-grade front and rear bumpers
- Beadlock wheels
Every Detail
Specifications
Engine
- Type
- Single-cylinder, 4-stroke, DOHC
- Displacement
- 650 cc
- Torque
- 55 N·m (42 lb-ft)
- Cooling
- Liquid-cooled
- Fuel System
- BOSCH electronic fuel injection (EFI)
- Emissions
- Meets applicable Transport Canada / EPA off-highway vehicle requirements.
Drivetrain
- Transmission
- CVTech CVT (L / H / N / R / P)
- Drive Modes
- 2WD/4WD
- Diff Lock
- Front differential lock
- Low/High Range
- High / Low range
- Final Drive
- Shaft drive
Capability
- Towing Capacity
- 810 kg
- Payload Capacity
- 350 kg cargo box
- Bed Capacity
- 350 kg cargo box
- Ground Clearance
- 280–317.5 mm (by trim)
- Winch
- 1,131–1,587 kg (2,500–3,500 lb) electric winch (by trim)
Chassis
- Frame
- High-yield strength alloy steel
- Front Suspension
- Double A-arm, 254 mm travel
- Rear Suspension
- Double A-arm, 254 mm travel
- Front Brake
- Dual 193 mm discs, hydraulic twin-piston calipers
- Rear Brake
- Dual 193 mm discs, hydraulic twin-piston calipers
- Tires
- 25×8×12 / 25×10×12 (base) up to 27×9×14 / 27×11×14 (higher trim)
- Wheels
- 12 in steel (base) up to 14 in aluminum (higher trim)
Dimensions
- Length
- 2,900 mm (2-seat) / 3,720 mm (crew cab)
- Width
- 1,470 mm
- Height
- 1,980 mm
- Wheelbase
- 1,950 mm (2-seat) / 2,770 mm (crew cab)
- Dry Weight
- 610 kg (2-seat) / 750 kg (crew cab)
- Fuel Capacity
- 35 L
- Seating
- 2 (crew-cab variant seats 4)
- Cargo Box
- 350 kg cargo box
Electronics
- Display
- 5 in digital display (7 in multifunction on higher trims)
- EPS
- Electronic power steering (EPS)
- Lighting
- LED headlights & taillights
Additional
- Warranty
- 3-year limited factory warranty, backed by SWM Canada.
Preliminary specifications, subject to change. Compliant with applicable Transport Canada requirements.
